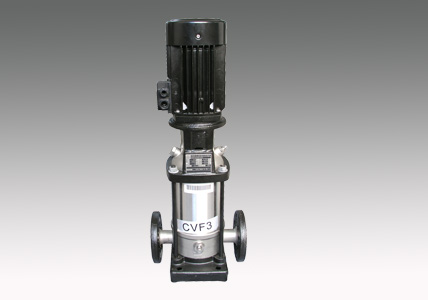

LX CVF Series Stainless steel centrifugal pump

 LX CVF Series Stainless steel centrifugal pump, CVF Series Stainless steel centrifugal pump, LX Stainless steel centrifugal pump:

 ( LX Pump: Top Quality Pump In China )

1) Feature:



        Stainless steel centrifugal pump: CVF is a kind of multifunctional products. It conveys various medium from tap water to industrial liquid at different temperature and different flow rate and pressure. This pump is consist of a base and a pump head, the pressure-resistant cylinder and flow passage components fixed between pump head and in/outlet section with tie-bar bolts. The inlet and outlet are located at the pump bottom in the same plane (inline type). Applied dedicated ridge type mechanical seals ensure watertight in long-time continuous operation. Use advanced design of Hydraulic model under stable operation and high efficiency; The material of outlet and inlet is SUS304; the liquid part is made of SUS304,. Under processing of advanced welding equipment, heat treatment, the stress caused by end-cut plate in tension and press forming is eliminated to make in high strength, no deformation, long life, safe and reliable usage;



Motor: The material of frame is aluminum; it is under low-noise and less-vibration and durability. Insulation class F, protection IPX55, continuous duty; Single-phase with thermal protector from T1 to ensure safety and convenience.



      Certificate: 1. China CCC certificate

                         2. TUV certificate  Germany

     Connection method: 1.Thread (union)   2. Cutting ferrule joint (PJE)   3. Flange (DIN-FGJ)

2) Application

    1. Water supply: water filter and Conveying in waterworks, pressure boosting of main pipe, pressure boosting of high-rise building.

    2. Industrial pressure boosting: process flow water system, cleaning system, high-pressure washing system, fire fighting system.

    3. Industrial liquid conveying: cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose.

    4. Water treatment: Ultra filtration system, separator, swimming pool.

    5. Irrigation: Farmland irrigation, dripping irrigation.

    6. Liquid of weak acids and weak alkali.

3) Operation condition:

   1. liquid temperature: Normal temperature type: -15~+70,heat water type: +70至+120

   2. Max ambience temperature: +50℃

   3. Max pressure: 30 bar

   4. Max suction head: No self-priming

   5. The maximum elevation:

1000m

   4) Aprication:



  1. Request for the flow and pressure



              2.The mechanical seal configurations is selective for normal water, pure water or hot water type.





              3.Applied region’s voltage and frequency: single-phase: 220-240V/50Hz220V-240V/60Hz110-120V/60Hz is available; three-phase: 380-415V/50Hz380-415V/60Hz is available.



              4. Applied region’s request for safety certific4. Confirm the bore of outlet and inlet.

  5. Connection method: Thread (union),  Cutting ferrule joint (PJE),  Flange (DIN-FGJ) is available.



Model



P2(KW)



(V)

Model



P2(KW)



(V)



CV9(F)1s-2



0.37



1*220-240V/3*380-415V



CV9(F)1-2



0.37



1*220-240V/3*380-415V



CV9(F)1s-3



0.37



1*220-240V/3*380-415V



CV9(F)1-3



0.37



1*220-240V/3*380-415V



CV9(F)1s-4



0.37



1*220-240V/3*380-415V



CV9(F)1-4



0.37



1*220-240V/3*380-415V



CV9(F)1s-5



0.37



1*220-240V/3*380-415V



CV9(F)1-5



0.37



1*220-240V/3*380-415V



CV9(F)1s-6



0.37



1*220-240V/3*380-415V



CV9(F)1-6



0.37



1*220-240V/3*380-415V



CV9(F)1s-7



0.37



1*220-240V/3*380-415V



CV9(F)1-7



0.37



1*220-240V/3*380-415V



CV9(F)1s-8



0.37



1*220-240V/3*380-415V



CV9(F)1-8



0.55



1*220-240V/3*380-415V



CV9(F)1s-9



0.37



1*220-240V/3*380-415V



CV9(F)1-9



0.55



1*220-240V/3*380-415V



CV9(F)1s-10



0.37



1*220-240V/3*380-415V



CV9(F)1-10



0.55



1*220-240V/3*380-415V



CV9(F)1s-11



0.37



1*220-240V/3*380-415V



CV9(F)1-11



0.55



1*220-240V/3*380-415V



CV9(F)1s-12



0.37



1*220-240V/3*380-415V



CV9(F)1-12



0.75



1*220-240V/3*380-415V



CV9(F)1s-13



0.37



1*220-240V/3*380-415V



CV9(F)1-13



0.75



1*220-240V/3*380-415V



CV9(F)1s-15



0.55



1*220-240V/3*380-415V



CV9(F)1-15



0.75



1*220-240V/3*380-415V



CV9(F)1s-17



0.55



1*220-240V/3*380-415V



CV9(F)1-17



1.1



1*220-240V/3*380-415V



CV9(F)1s-19



0.55



1*220-240V/3*380-415V



CV9(F)1-19



1.1



1*220-240V/3*380-415V



CV9(F)1s-21



0.75



1*220-240V/3*380-415V



CV9(F)1-21



1.1



1*220-240V/3*380-415V



CV9(F)1s-23



0.75



1*220-240V/3*380-415V



CV9(F)1-23



1.1



1*220-240V/3*380-415V



CV9(F)1s-25



0.75



1*220-240V/3*380-415V



CV9(F)1s-25



1.5



1*220-240V/3*380-415V



CV9(F)1s-27



1.1



1*220-240V/3*380-415V



CV9(F)1s-27



1.5



1*220-240V/3*380-415V



CV9(F)1s-30



1.1



1*220-240V/3*380-415V



CV9(F)1s-30



1.5



1*220-240V/3*380-415V



CV9(F)1s-33



1.1



1*220-240V/3*380-415V



CV9(F)1s-33



2.2



3*380-415V



CV9(F)1s-36



1.1



1*220-240V/3*380-415V



CV9(F)1s-36



2.2



3*380-415V







四、Selection notice:
