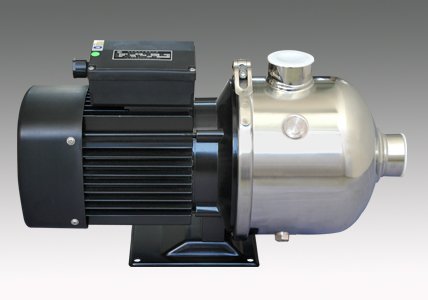

LX CMF2-30 CMF2-50 CMF2-60 Horizontal Multistage Centrifugal Pump



LX CMF2-30 CMF2-50 CMF2-60 Horizontal Multistage Centrifugal Pump, LX Stainless Steel Centrifugal Pump:



( LX Pump: Top Quality Pump In China )



1) Feature:



        Stainless Steel Centrifugal Pump: CMF series is pump casing-oriented multistage stainless steel pump; the liquid part is made of SUS304,. Under processing of advanced welding equipment, heat treatment, the stress caused by end-cut plate in tension and press forming is eliminated to make in high strength, no deformation, long life, safe and reliable usage; Applied mechanical seal type ensure watertight in long-time continuous operation. The material of frame is aluminum; it is under low-noise and less-vibration and durability. Insulation class B, Protection IPX55, continuous duty; Single-phase with thermal protector from T1 to ensure safety and convenience.

Certificate: 1. China CCC certificate

                    2. TUV certificate Germany

2) Application:

1. Air-conditioning system

2. Water treatment

3. Pressure boosting for the water on processing line.

4. Heating and cooling water on industrial processing line

5. Air freshen, moistening equipment (soft water)

6. Water supply and pressure boosting (drinking water, weak chlorine water)

7. Fertilization/metering system

8. Aquaculture

9. Convey thin, clean, non-flammable and non-explosive liquid without solid granules and fibers

3) Operation conditions:

     1. Liquid temperature: +5℃-+60℃

     2. Max ambience temperature: +50℃

     3. Max pressure: 10 bar

     4. Max suction head: No self-priming

     5. Maximum inlet pressure is limited by the maximum operating pressure

4) Guide for model selection:

     1. Request for the flow and pressure



              2. The mechanical seal configurations is selective for normal water, pure water or hot water type.



              3. Applied region’s voltage and frequency: single-phase: 220-240V/50Hz220V-240V/60Hz110-120V/60Hz is available; three-phase: 380-415V/50Hz380-415V/60Hz is available.

              4. Applied region’s request for safety certific4. Confirm the bore of outlet and inlet.

              5. Plug’s type and length (no plug, Chinese plug. Europe plug, UL plug is available)



1. CMF2 series

model

power

P2kw

Q

 (m3/h)

1.0

1.5

2.0

2.5

3.0

3.5

Packing size



(kg)

220V/50Hz

380V/50Hz

CMF2-20

CMF2-20T

0.37

H

(m)

18

16

14

13

11

10

435*215*290

9.0

CMF2-30

CMF2-30T

0.37

27

24

21

20

17

14



435*215*290

9.5

CMF2-40

CMF2-40T

0.55

35

32

38

26

23

17



435*215*290

10

CMF2-50

CMF2-50T

0.55

43

40

35

33

28

22



435*215*290

10

CMF2-60

CMF2-60T

0.75

50

48

42

38

32

25



435*215*290

10.5



2. CMF4 series

model

power

P2kw

Q

 (m3/h)

2.0

3.0

4.0

5.0

6.0

7.0

Packing size



(kg)

220V/50Hz

380V/50Hz

CMF4-20

CMF4-20T

0.55

H

(m)

18

16

15

13

10

7



435*215*290

10

CMF4-30

CMF4-30T

0.75

27

25

22

19

15

10



435*215*290

11

CMF4-40

CMF4-40T

0.75

36

33

30

26

20

14



435*215*290

11.5

CMF4-50

CMF4-50T

1.0

44

41

38

32

26

20



435*215*290

12

CMF4-60

CMF4-60T

1.1

53

50

45

40

33

24



435*215*290

12.5



3. CMF8 series

model

power

P2kw

Q

 (m3/h)

4.0

5.0

6.0

7.0

8.0

9.0

10

Packing size



(kg)

220V/50Hz

380V/50Hz

CMF8-10

CMF8-10T

0.55

H

(m)

15

14

13

12

10

9

8

490*275*315

10.5

CMF8-15

CMF8-15T

0.75

25

23

22

20

17

14

12

490*275*315

12.0

CMF8-20

CMF8-20T

1.0

30

28

26

24

20

18

16

490*275*315

14.0

CMF8-25

CMF8-25T

1.5

43

37

34

30

27

24

20

490*275*315

17.0

CMF8-30

CMF8-30T

1.85

44

42

38

36

30

27

24

490*275*315

21.5

CMF8-35

CMF8-35T

2.2

56

51

48

44

37

32

28

490*275*315

23.0



4. CMF12 series

model

power

P2kw

Q (m3/h)

6.0

7.0

8.0

9.0

10

11

12

13

14

Packing size



(kg)

220V/50Hz

380V/50Hz

CMF12-10

CMF12-10T

1.0

H

(m)

19

18

17.5

16

15.5

14

13.5

12

10.5

490*275*315

12.0

CMF12-15

CMF12-15T

1.5

28

27

26

25

24

22

20

18

15

490*275*315

13.5

CMF12-20

CMF12-20T

1.85

38

36

35

32

31

29

28

24

20

490*275*315

21.0

CMF12-25

CMF12-25T

2.2

47

45

43

41.5

39

36

33.5

30.5

27

490*275*315

24.0

*

CMF12-30T

3.0

53.5

52

50

47.5

45

42

39

35

30

550*275*300

27.0



5. CMF16 series

model

power

P2kw

Q (m3/h)

8

10

12

14

16

18

20

22

24





(kg)

220V/50Hz

380V/50Hz

CMF16-10

CMF16-10T

1.0

H

(m)

12

11.5

11

10.5

10

9

8

7

6



13.5

CMF16-20

CMF16-20T

1.5

24

23

22

21

20

19

16

14

12



17

CMF16-30

CMF16-30T

2.2

38

36

34

33

30

28

26

23

20



23



6. CMF20 series

model

power

P2kw

Q (m3/h)

10

12

14

16

18

20

22

24

26

28





(kg)

220V/50Hz

380V/50Hz

CMF20-10

CMF20-10T

1.0

H

(m)

13

12.5

12

11.5

11

10.5

10

9

8.5

7.5



20

CMF20-20

CMF20-20T

1.85

25

24

23

22

21

20

18

16

14

12



22

*

CMF20-30T

3.0

39

38

36

35

33

31.5

30

27

24

21



25
