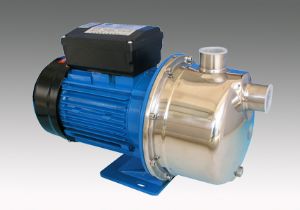

LX BJZ037/BJZ060/BJZ075/BJZ100/BJZ150 Self-priming Stainless Steel Jet pump

LX BJZ037/BJZ060/BJZ075/BJZ100/BJZ150 Self-priming Stainless Steel Jet pump, LX Jet garden pump:

(LX Pump: Top Quality Pump In China)

1) Feature:



       Impeller structure: close impeller

       Certification:  1. CCC Safety certificate

                        2. CE certificate for EU.

2) Application:

        1. Household boosting, garden sprinkler, car washing

        2. Pure water equipment washing

        3. Non-flammable or non-explosive clear water without abrasive or fibre and not aggressive to stainless steel

3) Operation conditions:

        1. Liquid temperature: +5C-+60C.

        2. Max environmental temperature: +50C.

        3. Max pressure: 6 bar

        4. Max suction head: 8 m

4) Model selection:

       1. Request for the flow and pressure

       2. There are plastic impeller and stainless steel impeller for BJZ to select.

                3. The mechanical seal configurations are selective for normal water, pure water or hot water type.

                4. Applied region’s voltage and frequency: single-phase: 220-240V/50Hz, 220V-240V/60Hz, 110-120V/60Hz is available; three-phase: 380-415V/50Hz, 380-415V/60Hz is available.

                5. Applied region’s request for safety certificate.

                6. Plug’s type and length (no plug, Chinese plug. Europe plug, UL plug is available. )





Model

Power

(kw)

Head

(m)

(L/min)

Inlet/ Outlet

(kg)

Packing Size

(mm)

Qty/20"

(pcs)

220V/50Hz

380V/50Hz

BJZ037

BJZ037T

0.37

35

3.0

G1

6.0

385*205*230

1650

BJZ075

BJZ075T

0.55

35

3.0

G1

6.0

385*200*280

1320

BJZ100

BJZ100T

0.75

35

4.0

G1

8.0

385*200*280

1320

BJZ150

BJZ150T

1.0

41

4.0

G1

9.0

445*220*285

985


BJZ037/BJZ75/BJZ100/BJZ150 Self-priming Stainless Steel Jet pump: BJZ series jet garden pump is single-stage stainless steel pump;
BJZ037/BJZ75/BJZ100/BJZ150 Self-priming Stainless Steel Jet pump
