LX Flow type heater (H10-R1/H15-R1/H20-R1/H30-R1), LX Hot Tub SPA Heater:

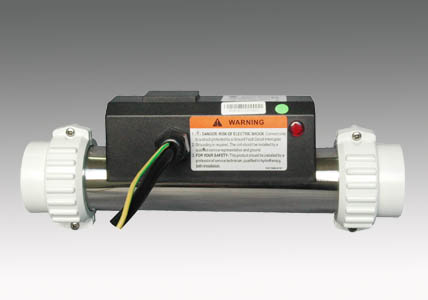

LX Flow type heater (H10-R1/H15-R1/H20-R1/H30-R1)
Features: hot tub spa heater, stainless steel casing, three types of shape, to be installed in any position convenience and is available for hydromassage bathtub.
Heating element: using UL approval metal pipe electric-heating element, Incoloy800 against high temperature and against causticity dedicated stainless steel pipe.
Temperature controlling element: double sheet metal thermostat, adjust temperature with 45C or 50C automatic reset, limit temperature with 60C manual reset.
Casing: SUS304 stainless steel, three types of installing(X), 1 (I). 2(L). 3. (T)
Anti-dry protection: Water pressure switch, heater power≥3000W, Water pressure switch is lead out as a signal line.
Certification: CE European Union mandatory safety certification, TUV German safety certification.
Application:
1. hydromassage bathtub, SPA large outdoor pool, equal heating
Selection information:
1.Heater power, applied region’s voltage (230V. 115V）.
2. Applied region’s request for safety certificate.
3. Installation type: 1 (I)、2 (L)、3 (T).
4. Request for inlet and outlet fitting size: 3/4″(27mm)、32mm、1″(33.5mm)、1.5″(48.5mm)、50mm.
5. Whether water pressure switch signal line is lead out.
LX Flow Type heater (H10-R1/H15-R1/H20-R1/H30-R1):
|
H-R1 系 列 恒 温 器 规 格 参 数
|
|
型号
|
功率
kw
|
电流(A)
|
水缸水容量
Liter
|
安装外壳与长度mm
|
配浴缸
参考
|
包装尺码
mm
|
|
230V
|
115V
|
H10-R1
|
1.0
|
4.5
|
8.7
|
150-200
|
φ50.8*L255
|
单人缸
|
290×160×155
|
|
H15-R1
|
1.5
|
6.5
|
13
|
200-300
|
单人缸
|
290×160×155
|
|
H20-R1
|
2.0
|
8.7
|
*
|
300-400
|
双人缸
|
290×160×155
|
|
H30-R1
|
3.0
|
13
|
*
|
＞400
|
SPA大缸
|
290×160×155
|
|
H20-R1(Big Tub)
|
2.0
|
8.7
|
*
|
300-400
|
φ57*L330
|
双人缸
|
370×175×155
|
|
H30-R1(Big Tub)
|
3.0
|
13
|
*
|
＞400
|
SPA大缸
|
370×175×155
|
|
