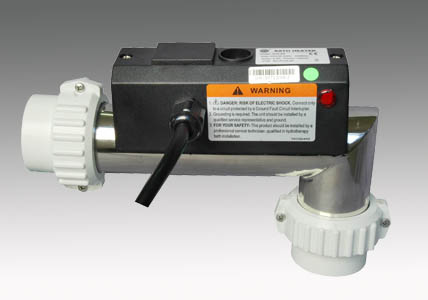

LX Flow type heater (H10-R2/H15-R2/H20-R2/H30-R2)

LX Flow type heater (H10-R2/H15-R2/H20-R2/H30-R2), LX Hot Tub SPA Heater:

LX Flow type heater (H10-R2/H15-R2/H20-R2/H30-R2)

Features:

LX hot tub spa heater, casing is usedφ57(2″)stainless steel pipe, low-power density heater element design. The
products are safe and reliable. Many types of anti-dry protection for choosing. It is available for SPA large pool circular heating.
   Heating element: using UL approval metal pipe electric-heating element, Incoloy800 against high temperature and against causticity dedicated stainless steel pipe.
Temperature controlling element: double sheet metal thermostat, adjust temperature with 50 ℃ automatic reset, limit temperature with 68 ℃ manual reset.
 Casing: SUS304 stainless steel, installation type 1( I)
Anti-dry protection: Water pressure switch (P), water flow switch (F), switch signal line is lead out, temperature transducer (T), needing use with dedicated SPA controller.
 Certification: CE European Union mandatory safety certification, TUV German safety certification.
      1. SPA large outdoor pool, equal heating
   Selection information:
      1. Heater power, applied region’s voltage (230V)
      2. Applied region’s request for safety certificate.
      3. Installation type: 1( I)
      4. Request for inlet and outlet fitting size: 2″(60.3mm)、1.5″(48.5mm)、50mm。
      5. No water protection controlling, suffix is -(P)、-(F)、-(T), Standard configuration is -(P).

 LX Flow type heater (H10-R2/H15-R2/H20-R2/H30-R2):

H-R2 系 列 恒 温 器  规 格 参 数

型号

功率

kw

电流(A)

水缸水容量

Liter

安装外壳长度mm

配浴缸

参考

包装尺码

 mm

230V

115V

H10-R2

1.0

4.5

8.7

150-200

φ50.8*L255

单人缸

290×195×155

H15-R2

1.5

6.5

13

200-300

单人缸

H20-R2

2.0

8.7

*

300-400

双人缸

H30-R2

3.0

13

*

400

SPA大缸
