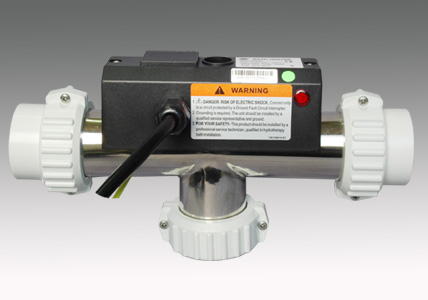

LX Flow type heater (H10-R3/H15-R3/H20-R3/H30-R3), LX Hot Tub SPA Heater:
LX Flow type heater (H10-R3/H15-R3/H20-R3/H30-R3)
Features:
LX hot tub spa heater, casing is usedφ57(2″)stainless steel pipe, low-power density heater element design. The
products are safe and reliable. Many types of anti-dry protection for choosing. It is available for SPA large pool circular heating.
Heating element: using UL approval metal pipe electric-heating element, Incoloy800 against high temperature and against causticity dedicated stainless steel pipe.
Temperature controlling element: double sheet metal thermostat, adjust temperature with 50 ℃ automatic reset, limit temperature with 68 ℃ manual reset.
Casing: SUS304 stainless steel, installation type 1( I)
Anti-dry protection: Water pressure switch (P), water flow switch (F), switch signal line is lead out, temperature transducer (T), needing use with dedicated SPA controller.
Certification: CE European Union mandatory safety certification, TUV German safety certification.
1. SPA large outdoor pool, equal heating
Selection information:
1. Heater power, applied region’s voltage (230V)
2. Applied region’s request for safety certificate.
3. Installation type: 1( I)
4. Request for inlet and outlet fitting size: 2″(60.3mm)、1.5″(48.5mm)、50mm。
5. No water protection controlling, suffix is -(P)、-(F)、-(T), Standard configuration is -(P).
LX Flow type heater (H10-R3/H15-R3/H20-R3/H30-R3):
H-R3 系 列 恒 温 器 规 格 参 数
H-R3 series specification parameter
|
型号Model
|
功率Power
kw
|
电流Current(A)
|
水缸水容量tub capacity
Liter
|
安装外壳长度casing length mm
|
配浴缸
参考Remark
|
包装尺码 Dimension
mm
|
230V
|
115V
|
H10-R3
|
1.0
|
4.5
|
8.7
|
150-200
|
φ50.8*L255
|
Single bathtub
|
290×195×155
|
H15-R3
|
1.5
|
6.5
|
13
|
200-300
|
Single bathtub
|
H20-R3
|
2.0
|
8.7
|
*
|
300-400
|
double batchtub
|
H30-R3
|
3.0
|
13
|
*
|
>400
|
SPA
|
|
